Aria Brack Mount Kit [Luxe]

Brand:

CAD $90.00CAD $145.00

SKU Categories , Brand

Description

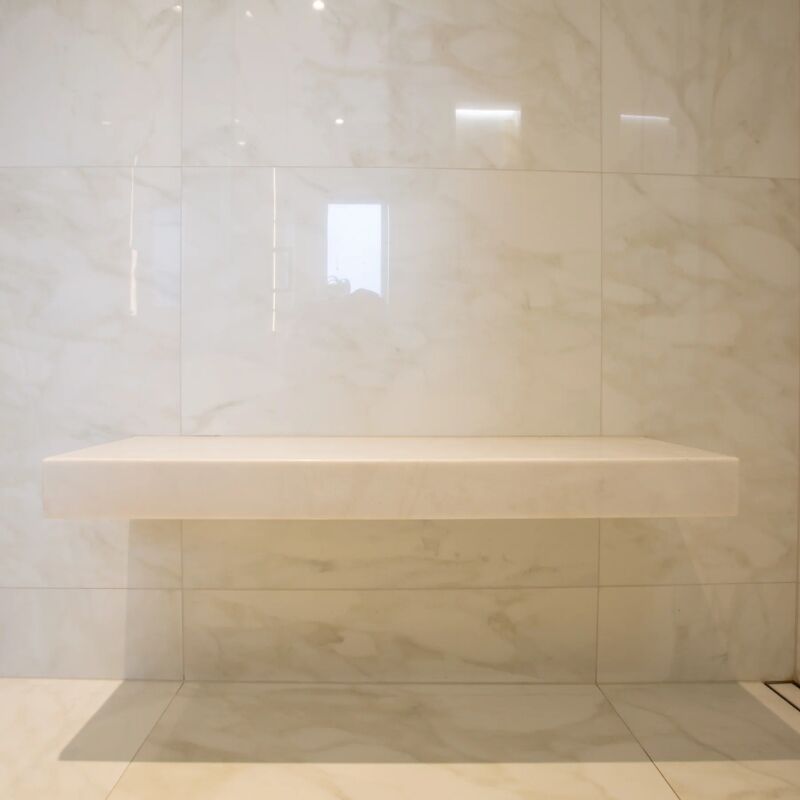

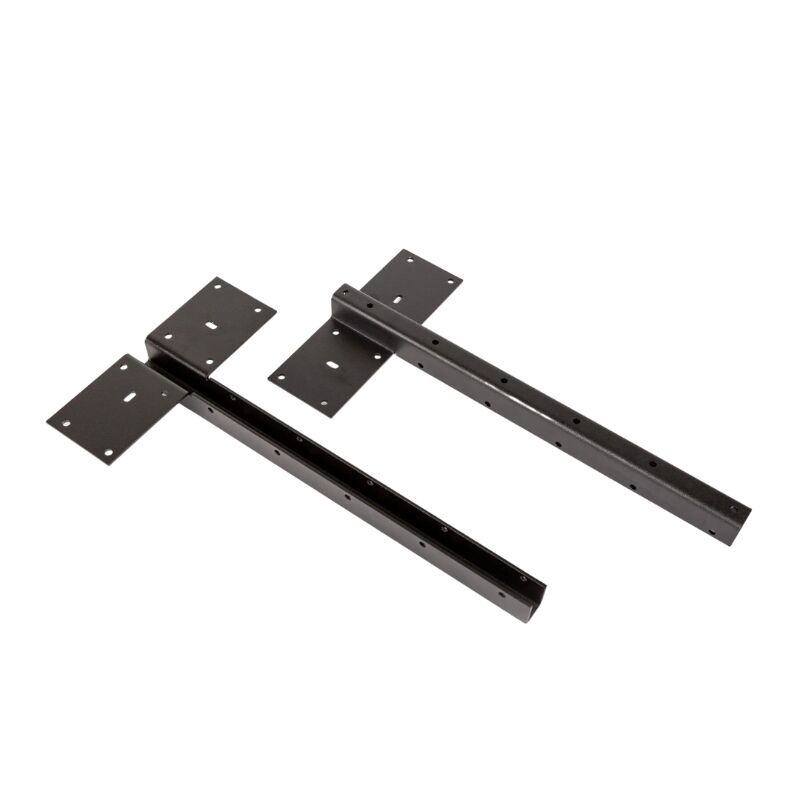

Structural support kit for floating shower seats, suspended shelving/furniture, and more. It’s modular design can be combined to accommodate structures with longer spans. Kit contains two brackets and two sets of screws.

*Additional 2 3/4″ screws required if combining kits

100% Manufactured in Canada

Features

  • Time saving installation for floating bench/shelf
  • Highest rated capacity vs. competitors (up to 350lbs per Brack-14)
  • Modular application
  • Combine kits as necessary [recommend 1 kit per 16” span – will vary by project]

Specifications & Install Guides

  • Material – galvanized sheet metal with a long lasting powder coating (8 gauge)
  • Recommended span between brackets is 16″ on centre. Depending on weight of finishing material and application, span can vary.
  • Each bracket is rated to hold 350 lbs.
  • Studs must be a minimum of 2″x4″
  • Install is best done by a Pro.

DETAILED DIMENSIONS
INSTALL GUIDE
INSTALL VIDEO

FAQ

At what point are these brackets installed in the build process?

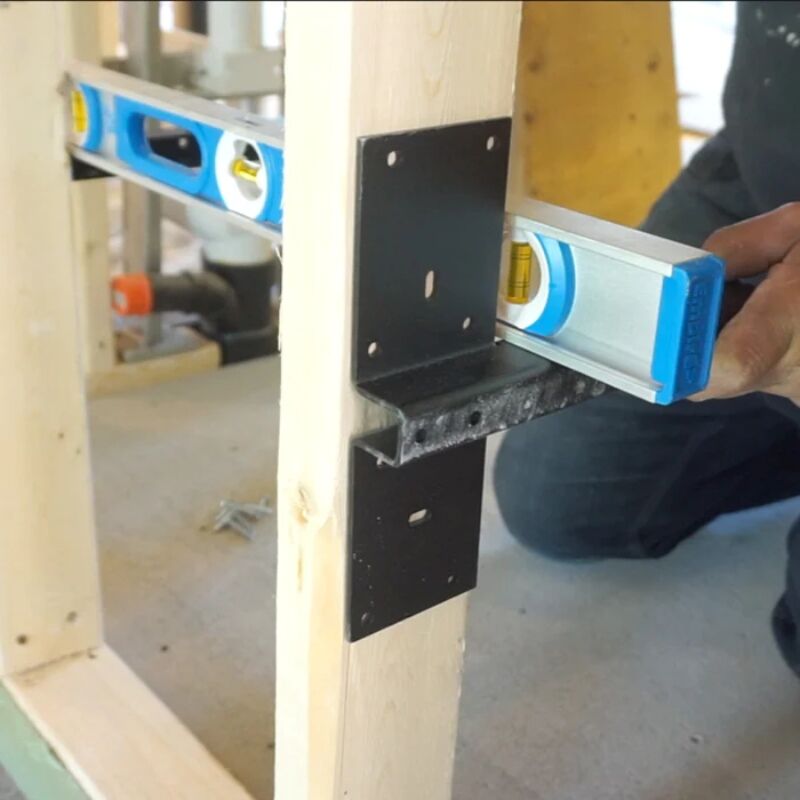

Brackets must be mounted at the rough-in stage. You must have access to the studs inside the framed wall to properly mount.

What is this used for?
The Brack-14 Kit [Luxe] is a structural support for any application where there is an engineered suspended structure. (ie. floating shower seat, shelves, vanity, etc.)

Can I use foam board in between the brackets?
No – foam board is not structurally sound. You must use a structurally sound material (ie. 3/4″ plywood, aluminum honeycomb, solid wood, etc.)

For shower application, can I tile directly on top of the engineered seat?
No – you absolutely must waterproof prior to tiling.

Can I fasten the brackets on a 2×2 stud?
No – a minimum 2×4 stud in required. 2×6, 2×8, studs are also compatible.

Can I fasten the brackets to metal stud?
No – wood studs only.

What’s the difference between the Luxe model and the Lite model?
The main difference between our Luxe and Lite models is the material; the Luxe is metal and the Lite is ABS plastic.

Weight 8 lbs
Dimensions 19 × 13 × 2 in
Brand

Size

12", 14"
